A reversal emulsion and developing process for amateurs invented by Pathé for the 9.5mm Pathé-Baby format.
Film Explorer

Unidentified home movie, c. 1924.
Collection Fondation Jérôme Seydoux-Pathé, Paris, France.

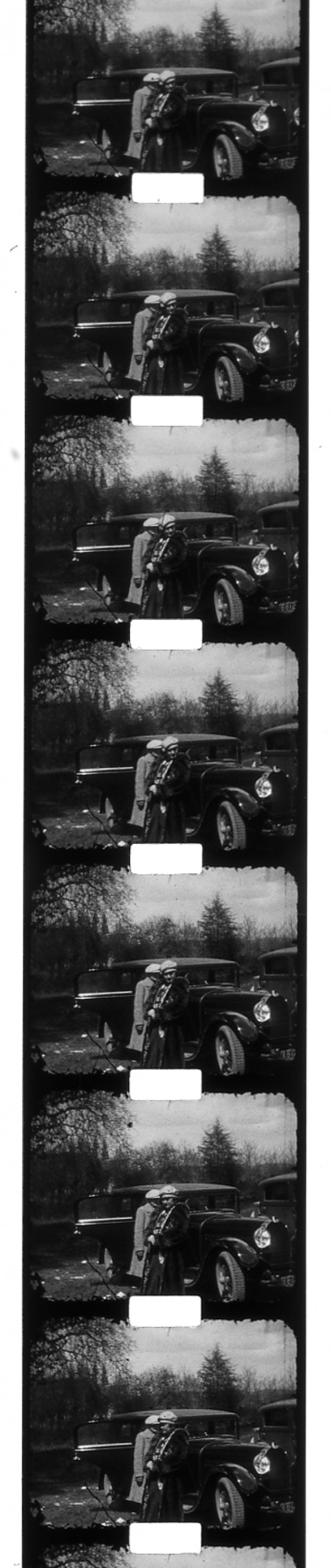

There are multiple edge markings on this film from c. 1933. “PATHE PARIS” and “INVER 3” can clearly be seen in the frame lines, while letters spelling out “NON FLAM” appear in consecutive frame lines. “INVER” is short for inversible (“reversal” in French).
Collection Fondation Jérôme Seydoux-Pathé, Paris, France.
Identification
8.2mm x 6.2mm (0.323 in x 0.244 in).
Approx.
Between 14 and 16 fps at normal speed.
1
The following color stocks were available to amateurs on 9.5mm film: Dufaycolor, Kodachrome, Gevacolor, Ferraniacolor (sometimes branded as Pathéscope-color), Agfacolor Neu, Kodachrome II, Ektachrome, Gevachrome, and Fujichrome.
Sound could be recorded on magnetic stripe. For more details, see the entry 9.5mm reversal film with magnetic stripe.
8.5mm x 6.5mm (0.335 in x 0.256 in).
A central rectangular perforation (2.4mm x 1mm) in between each frame.
The following is a non-exhaustive list of different B/W reversal emulsions available on 9.5mm film: Pathé orthochromatic (1922), Pathé orthochromatic extra fine grain (R.O.F., c. 1933), Pathé supersensitive panchromatic (P.S.P., 1932), Pathé supersensitive panchromatic extra fine grain (P.S.P.F., 1933), plus other manufacturers starting in the 1930s: Bauchet, Capelli, Ciné-film (Mimosa), Eumig, Ferrania, Gevaert, Fred Jeannot (G.E.F.), Lumière, Ilford (Selo), Mondial, Perutz (Rectepan), P.F.M. Ltd. (Cinecomet), and Universel. The following color reversal stocks were also available: Dufaycolor (1936), Kodachrome (1951), Gevacolor, Ferraniacolor, Agfacolor, Pathéscope-color, Kodachrome II, Ektachrome, Gevachrome (as Reversal 710), and Fujichrome (Velvia, Provia, RTP and Astia). Standard negative and positive emulsions were also available from Pathé for 9.5 enthusiasts.
Edge markings typically appear in the frame line between each frame. They are often hard to see. These markings seem to have been introduced around 1929 or 1930 by Pathé (French patent FR683837). They also exist on other emulsions, depending on the manufacturer (for example, Ferrania and Gevaert). On Pathé stocks, these markings typically list the manufacturer or brand, the type of emulsion and a numerical code corresponding to the date of production.
History
The 9.5mm film format was successfully introduced by the Pathé Company together with the Pathé Baby projector in 1922. Nine months later, in July 1923, the Pathé Baby camera was launched, which, furthermore, introduced a new type of film – a reversal film, which made shooting easier and, above all, reduced film processing costs. This film, also known as a “direct positive", had the advantage of bypassing the traditional step of making prints from a negative. In this case, a special chemical treatment transformed the negative image into a positive on the same film. This economical solution was an obvious choice for film manufacturers Pathé and Kodak, who each created their own reversal process for their respective formats 9.5mm and 16mm. In fact, the use of reversal film went on to define the practice of small-gauge cinema throughout its history.
Georges Zelger, a chemical engineer, began trials on the composition of a reversal emulsion and its processing method in December 1922, under the direction of Jacques Pathé, Charles Pathé's nephew who had been appointed to the commercial management of Pathé-Baby. At the same time, Continsouza Manufacturing (Établissements Continsouza), Pathé's camera manufacturer, had been working on the design of a simplified camera since January 1922. Unlike Kodak – which adopted a complex inversion method involving a second light exposure, followed by a second processing step – Pathé's film processing was designed to be as practical as possible, so that it could be carried out by relatively inexperienced amateurs. Their method transformed the negative into a positive through a series of chemical baths, a much easier process to carry out than a second light exposure. The final step, blackening the unexposed silver halide crystals, is completed in a sodium hydrosulfite immersion bath. This formula was patented. The engineers also designed a handy development kit, consisting of a small individual tank and ready-to-use product doses. The kit was made available to the public, enabling home processing. However, in practice, Pathé-Baby customers would often entrust film processing to professional laboratories. As soon as the camera was put on the market, the Joinville-le-Pont factory set up an amateur film processing unit, headed by Louis Didiée. However, given the highly convenient nature of the method, many Pathé-Baby retailers were able to offer this processing service in their shops.
In 1927, the film manufacturing factory in Vincennes became Kodak-Pathé. The new company continued to manufacture film specially created for Pathé-Baby. Reversal films followed the same developments as professional films. The Société française du Pathé-Baby released a panchromatic reversal film in 1932, and super-sensitive, fine-grain films the following year. During the 1930s, the number of rival film manufacturers multiplied. As a sign of Pathé-Baby's commercial success, there were no less than ten different French and European brands offering 9.5mm film. In color, Dufaycolor was issued on 9.5mm in 1936–37, albeit hesitantly. It wasn't until January 1951 that 9.5 mm Kodachrome was released, enabling the format to catch up with 16mm and 8 mm.
Kodak-Pathé remained the main supplier of raw 9.5mm film, long after Pathé had abandoned the format, until 1976, when 9.5mm Kodachrome was discontinued. After this date, amateurs could still purchase film, thanks to the dedication of a few entrepreneurs and enthusiasts. Ligonie, a 9.5 mm equipment manufacturer, packaged Ektachrome in 9.5mm reels. The legacy was then carried on by 9.5 cine clubs like SACOM 9.5 and SEF 9.5. Using industrial machines salvaged from factories, they perforated and slit 35mm film into 9.5mm, using reels of raw reversal film, such as Gevachrome or Fujichrome. The last production runs were carried out by the Cinédia laboratory in 2014. However, in June 2023, the format was revived when the French company Color Films Archives announced the launch of 9.5mm Kodak Ektachrome 100D film, again slit down from 35mm.

Le Mariage de Georges (Georges Zelger & Louis Didiée, January 25, 1923). This film was made by engineers Georges Zelger and Louis Didiée at their colleague and friend Georges Moreau’s wedding. The purpose was to live test the Pathé-Baby camera prototype and the reversal film processes.
Collection Moreau-Zevaco, Fonds Cinéam, Essonne, France.
Technology
The reversal process transformed the exposed negative into a positive directly on the same support. At Pathé, this positive was obtained by four successive baths. The first bath revealed the negative image; this was followed by a reversal bath, which dissolved the revealed blacks; the third bath bleached the film to remove the yellow tint left by the reversal bath; and finally, the last bath blackened the silver halide crystals that had not been exposed during shooting.
Reversal emulsions typically exhibit low tolerance to aperture variations and exposure errors. Industrial processing focused on ensuring the photographic quality of film by chemically correcting exposure errors made by amateur filmmakers. Each film was processed individually to optimize its quality. In 1936, Pathé announced the launch of automated mechanical processing at its Joinville-le-Pont factory. From then on, the process would be based on second exposure. This method, already employed by Kodak, made it easier to correct film over- or under-exposed.
References
Abbott, Harold B. (c. 1936). The complete 9.5 mm cinematographer. London: Iliffe & Sons Ltd.
Anon. (1936). “Le développement automatique des films Pathé 9,5 mm”. Le Cinéma chez soi, 95 (August/September): pp. 4–5.
Anon. (1939). “Essais comparatifs des pellicules 9,5 mm”. Ciné amateur, 97 (July): pp. 19–21.
Boyer, Pierre, P. Faveau, B. Bau & R. J. Gomerieux (1934, 1936, 1937, 1939). Annuaire français du Cinéma d’amateurs, Paris: A. Redon.
Didiée, Louis (1926). Le film vierge Pathé. Vincennes: Pathé-Cinéma.
Didiée, Louis (1967). “Le cinéma chez soi. Petite histoire du ‘Pathé-Baby’”. Bulletin de l’AFITEC, 27 (1967): pp. 6–12.
Gourdet-Marès, Anne (2016). “La caméra Pathé-Baby: le cinéma amateur à l’âge de l’expérimentation”. In Valérie Vignaux and Benoît Turquéty (eds), L’amateur en cinéma. Un autre paradigme. Paris: AFRHC: pp. 74–93.
Gourdet-Marès, Anne & Elvira Shahmiri (2022). Pathé-Baby: Le Cinéma chez soi. Paris: Fondation Jerôme Seydoux-Pathé.
Patents
Pathé-Cinéma. Procédé pour l’obtention de positifs directs par retournement. FR562297 filed February 16, 1923, and issued November 8, 1923. https://data.inpi.fr/brevets/FR562297?q=562297#FR562297
Pathé-Cinéma. Boîte-magasin pour appareil de prise de vues cinématographiques. FR565999 filed May 9, 1923 and issued February 7, 1924. https://data.inpi.fr/brevets/FR565969?q=565969#FR565969
Pathé-Cinéma. Perfectionnement aux films pour appareils cinématographiques à entraînement par griffes. FR589547 filed November 24, 1924, and issued May 30, 1925. https://data.inpi.fr/brevets/FR589547?q=589547#FR589547
Pathé-Cinéma. Perfectionnement dans le mode de fixation d'un film cinématographique sur le noyau d'entraînement. FR588064, filed October 24, 1924 and issued April 29, 1925. https://data.inpi.fr/brevets/FR588064?q=588064#FR588064
Pathé-Cinéma. Procédé de signature des films cinématographiques. FR683837, filed February 1st, 1929 and issued June 18, 1930 https://data.inpi.fr/brevets/FR683837?q=683837#FR683837
Preceded by
Compare
Related entries
Author
After studying history, Anne Gourdet-Marès worked as a projectionist and camera assistant. With a passion for the history of cinematographic techniques, she is in charge of the cinematographic equipment collection at the Jérôme Seydoux-Pathé Foundation. Her research on the history of cameras, and their support, has been the subject of several papers and publications. As a court-appointed expert in her field, she is often consulted on technical issues. She also creates magic lantern shows and educational workshops exploring the technical inventions of cinema. In 2018, she published Si on allait au cinéma! for young audiences, published by À dos d'âne. To mark the centenary of Pathé-Baby, she curated the exhibition “Pathé-Baby: le cinéma chez soi”, held at the Fondation Jérôme Seydoux-Pathé in 2022.
Gourdet-Marès, Anne (2024). “9.5mm Pathé-Baby reversal”. In James Layton (ed.), Film Atlas. www.filmatlas.com. Brussels: International Federation of Film Archives / Rochester, NY: George Eastman Museum.
